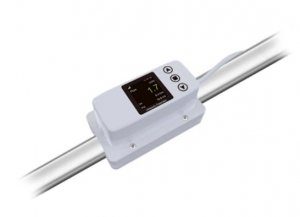

Screenshot_119

Products

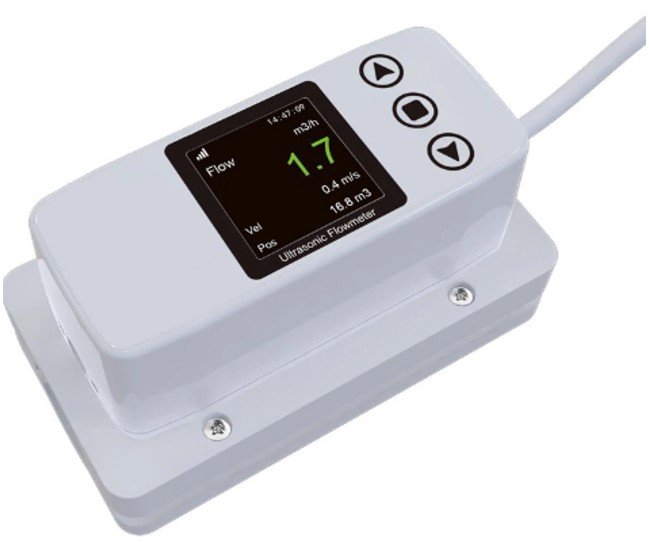

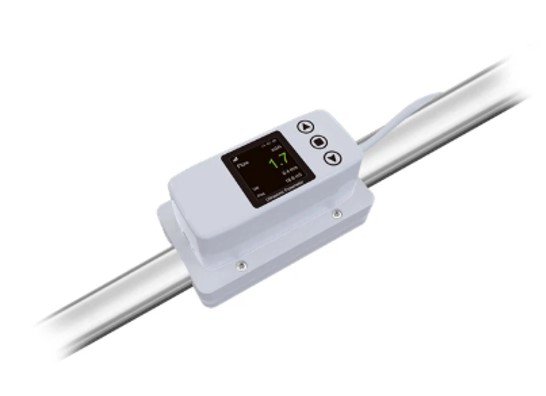

GEN002B SERIES DIGITAL CLIP-ON MULTI-ULTRASONIC FLOWMETER

Category: Ultrasonic Flowmeters

  • GEN002B Series Clip-on Ultrasonic Flowmeter- All pipe materials
    1 unit meter is ok for all 4 pipe materials.

    GFCL Aqua Systems Flow Meter

    Easy installation, No breaking pipeline
    No need to adjust, Clip on to measure
    LCD color display screen
    360° rotatable display screen

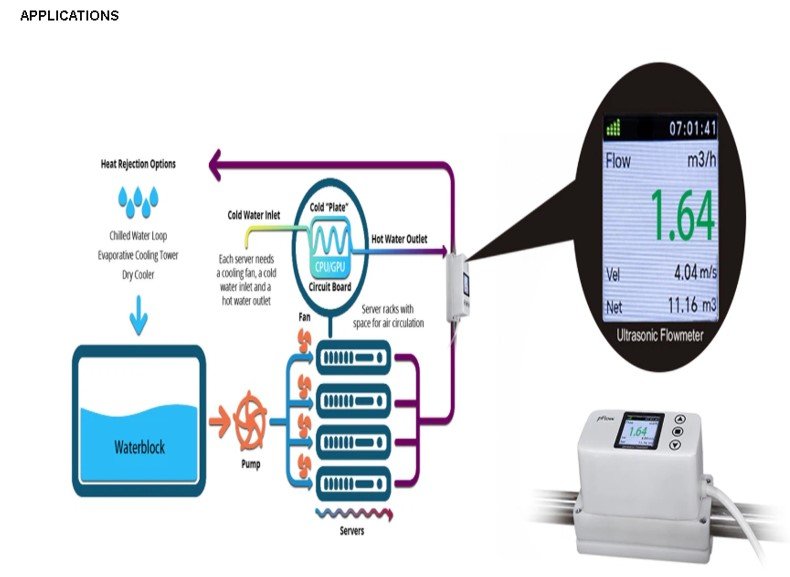

    APPLICATIONS

    • Water and wastewater management
    • HVAC (Heating, Ventilation, and Air Conditioning) systems
    • Process industries (chemical, pharmaceutical, food and beverage)
    • Energy management and environmental monitoring
    • Agriculture and irrigation systems
    • Research and development
    • Facilities management
    • Industrial maintenance and troubleshooting
    • Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.



    PRODUCT INTRODUCTION

    GFCL aqua systems flowmeter

    GFCL ultrasonic flowmeter adopts the measurement principle of transit-time method, relies on high-reliability signal processing circuits, and accurately measures flow rate through complex algorithms such as sampling, calculation, and correction.

    The product is designed with an integrated external clamping structure for quick and easy installation and operates without direct contact with the fluid medium, effectively avoiding interference with existing production processes. Accurate flow measurement can be realized in just a few simple steps. For small pipe diameter flow measurement needs, GFCL clamp-on ultrasonic flowmeter is undoubtedly the best choice.



    SPECIFICATIONS

    Performance Index

    Flow velocity

    0.03m/s ~5.0m/s

    Accuracy

    ±2%, (0.3m/s ~5m/s)

    Repeatability

    0.4%

    Pipe Size

    DN15, DN20, DN25, DN32

    Medium

    Water

    Pipe Material

    Stainless Steel, PVC, Copper, PPR

    Functional Index

    Communication Interface

    RS485, Support FUJI Protocol and MODBUS Protocol

    Output

    4~20mA

    Power Supply

    10～36VDC/500mA

    Keypad

    3 touch keys

    Display Screen

    1.54"LCD color screen, resolution 240*240

    Temperature

    Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃)

    Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃)

    Humidity

    Relative humidity 0~99%, No condensation

    IP

    IP54

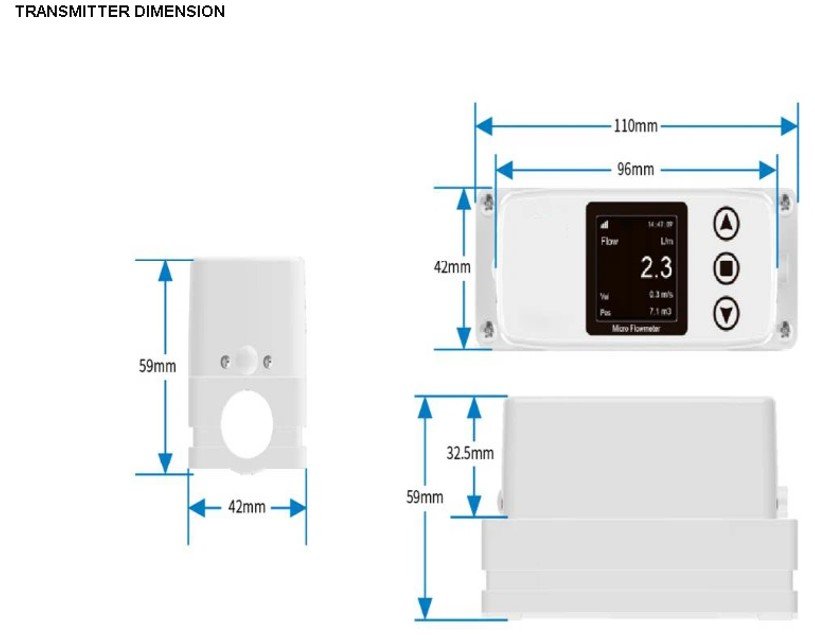

    Physical Characteristics

    Transmitter

    All-in-one

    Transducer

    Clamp on

    Cable

    φ5 six core cable, standard length: 2m



    Stock Code

    Pipe size



    For PVC/Carbon Steel/Stainless Steel:

    GEN002B-RS485+4~20mA

    -

    GEN002B01-MFCL-DN10 PIPE (OD:13.5-18.5 MM)

    PIPE (OD:13.5-18.5 MM)

    GEN002B02-GFCL-DN15 PIPE (OD.18.5-22.5 MM)

    PIPE (OD.18.5-22.5 MM)

    GEN002B03-GFCL-DN20 PIPE (OD.22.5-29 MM)

    PIPE (OD.22.5-29 MM)

    GEN002B04-GFCL-DN25 PIPE (OD.29-35 MM)

    PIPE (OD.29-35 MM)

    GEN002B05-GFCL-DN32 PIPE (OD.36-42.5 MM)

    PIPE (OD.36-42.5 MM)

    GEN002B06-GFCL-DN40 PIPE (OD.48-54.5 MM)

    PIPE (OD.48-54.5 MM)

    GEN002B07-GFCL-DN50 PIPE (OD.57-63.5 MM)

    PIPE (OD.57-63.5 MM)



    *Remarks
    1 unit meter is ok for all 4 pipe materials.

    Stainless Steel, PVC, Copper, PPR
