Accuracy: ±2.0%
Pipe size range: O.D21mm~91mm
Output: 4-20mA & RS485
Clamp on to measure water flowStock Code

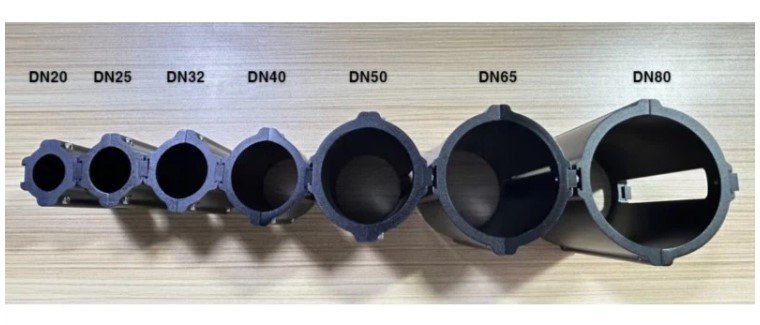

Pipe size
For PVC/Carbon Steel/Stainless Steel:
GEN001B-RS485+4~20mA
-
GEN001B01-F3CL-DN20
Pipe OD(21-29 mm)
GEN001B02-F3CL-DN25
Pipe OD (28-36 mm)
GEN001B03-F3CL-DN32
Pipe OD (35-43 mm)
GEN001B04-F3CL-DN40
Pipe OD (46-54 mm)
GEN001B05-F3CL-DN50
Pipe OD (59-67 mm)
GEN001B06-F3CL-DN65
Pipe OD (72-80 mm)
GEN001B07-F3CL-DN80
Pipe OD (83-91 mm)
*Remarks
(PVC / Carbon Steel / Stainless Steel, you can only choose one pipe material) For example, how to choose models for order:
1) GEN001B01-F3CL-DN20-PVC
2) GEN001B01-F3CL-DN20-Carbon Steel
3) GEN001B05-F3CL-DN50-SS
PRODUCT INTRODUCTION

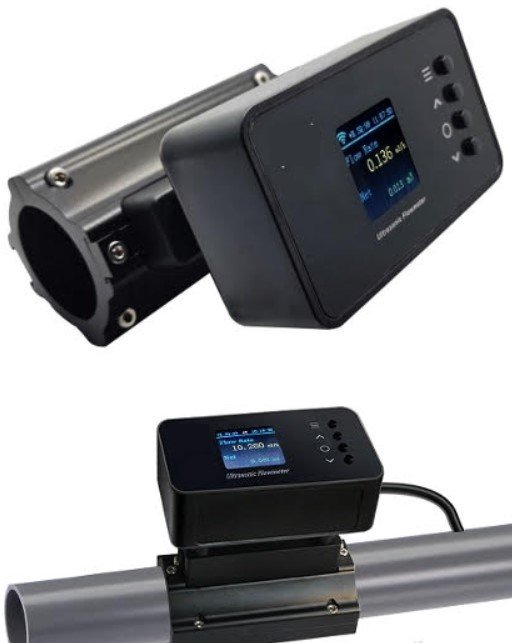

Clamp on Ultrasonic Flowmeter GEN001
The GEN001 flow meter offers effortless installation, exceptional accuracy and comprehensive data collection for precise flow monitoring in industrial applications.
Easy Installation: The F3CL ultrasonic flow meter offers a hassle-free installation process, eliminating the need for pipe disruption or complex setups. With its user-friendly design, customers can quickly and efficiently integrate this device into their existing systems without extensive downtime or specialized expertise.
LCD Color Screen: Experience the ultimate visual clarity with the F3CL's LCD color screen, boasting a superior resolution that enhances readability and usability. The vibrant colors and sharp display ensure that users can easily access and interpret flow data, even in varying lighting conditions, for enhanced convenience and accuracy.
Flow Monitoring: Stay informed and in control with the F3CL's comprehensive flow monitoring capabilities. This device enables users to track flow rates on a daily, monthly, and yearly basis, providing valuable insights into usage patterns and trends over time. By offering this level of monitoring granularity, the F3CL empowers users to optimize their operations and make informed decisions based on real-time data.
Versatile Applications: Designed to excel in a wide range of environments and applications, the F3CL is a versatile solution that adapts to diverse scenarios with ease. Whether used in industrial settings, commercial facilities, or residential properties, this flow meter delivers reliable and accurate performance, making it a versatile and indispensable tool for various industries and sectors.
SPECIFICATIONS
Performance Index
Flow velocity
0.03~5.0m/s
Pipe size
DN20~DN80
Accuracy
±2%
Measuring medium
Water
Pipe Material
Carbon Steel, Stainless Steel, Copper, PVC
Functional Index

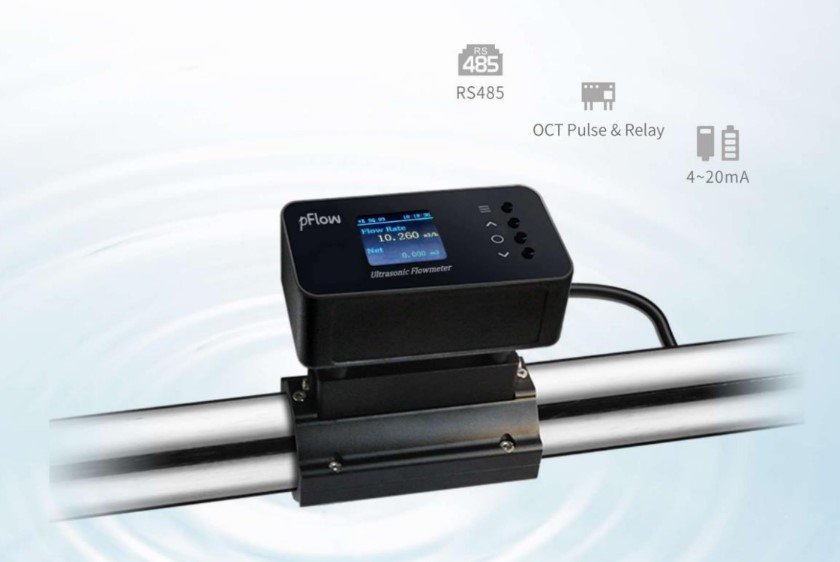

Output
4-20mA (for F3CL)
Communication Interface
RS485(standard); Support FUJI Protocol and MODBUS Protocol.
Power supply
10～36VDC/500mA
Keypad
4 touch keys
Display screen
1.44 " LCD colorful screen, resolution 128 * 128
Temperature
Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ )
Transducer measures medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Humidity
Relative humidity 0~99%, No condensation
IP
IP54
Physical Characteristics
Transmitter
Integrated
Transducer
Clamp on
Cable
φ5 six core cable, standard length: 2m

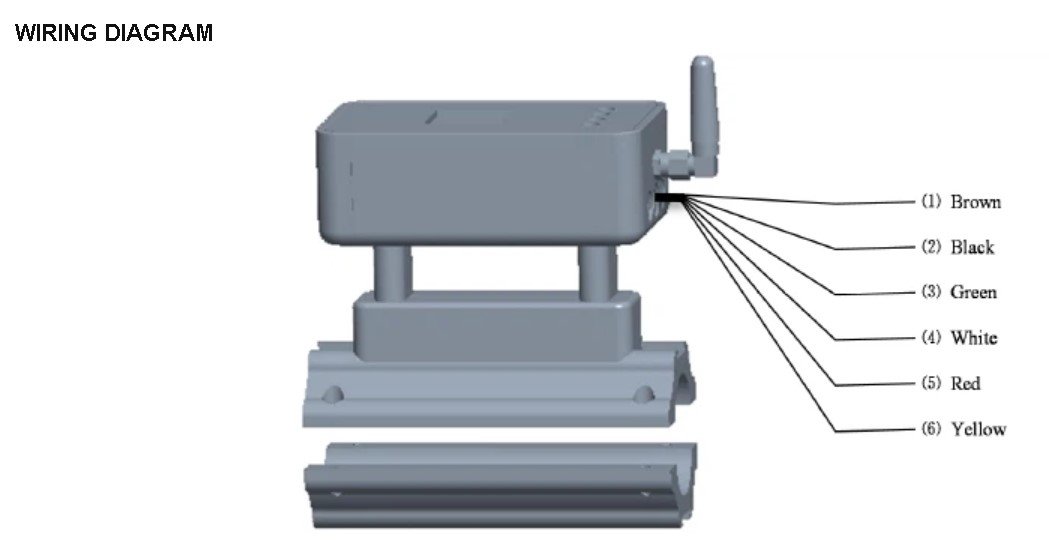

Function
Identifier
Color
Power Supply
(10~36VDC)
+
Brown
-
Black
RS485
A
Green
B
White
Optional
(4-20mA\OCT&Relay)
+
Red
-
Yellow
APPLICATIONS
Water and wastewater management
HVAC (Heating, Ventilation, and Air Conditioning) systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
